Diamond Core Bits & Milling Cutters

Self-guiding cutters for rounding over edges do not require a side fence. They are supplied with two bearings. Use the larger bearing for a round-over. If the cutter is lowered, a top quirk can more→be produced. Bullnose mouldings can also be produced by taking a second pass from the opposite side of the workpiece. Specifications • Shank Diameter: 8 mm • Dia Metric: 28.5 • Dia Imperial: 1 1/8 • Cut Length Metric: 12.7 • Cut Length Imperial: 1/2 • Overall Length Metric: 64 • Bearing Dia Metric: 9.5 • Bearing Dia Imperial: 3/8 • Radius 1 Metric: 7.9 • Radius 1 Imperial: 5/16

Some Ovolo cutters can be used with radius cutters, to make rule joints. Specifications • Shank Diameter: 1/4 • Dia Metric: 18 • Dia2 Metric: 12 • Cut Length Metric: 10 • Ov more→erall Length Metric: 38.6 • Radius 1 Metric: 3

This double ribbed ovolo style is an alternative to the rounding over cutter. If the cutter is lowered, a top quirk can be produced. Specifications • Shank Diameter: 1/4 • Dia Metric: 34.7 more→• Cut Length Metric: 17.5 • Cut Length Imperial: 11/16 • Overall Length Metric: 69 • Bearing Dia Metric: 9.5 • Bearing Dia Imperial: 3/8 • Radius 1 Metric: 5.5 • Radius 2 Metric: 5.5

Lenox Diamond hole saws are designed to cut more holes in less time. They are durable and long lasting, with oversized slots for quick removal of waste material. Specifications • Diameter: 38mm & more→bull; Compatible Arbors: 1L, 4L, 5L Features and Benefits • Brazed edge lasts longer in tiles and stone • Robust design for greater durability in tough applications • Low torque, little pressure required • Oversized slots for easy plug removal Contents • Hole Saw only • No Arbor or Pilot Drill (see specifications for compatible arbors)

By raising the cutter, the top quirk is removed. Specifications • Shank Diameter: 1/4 • Dia Metric: 25.4 • Cut Length Metric: 15.9 • Cut Length Imperial: 5/8 • Overall Length more→Metric: 65.5 • Bearing Dia Metric: 9.5 • Bearing Dia Imperial: 3/8 • Radius 1 Metric: 4

Attractive edge moulds. A full corner bead can be produced by making a second pass at 90 degrees. Specifications • Shank Diameter: 1/4 • Dia Metric: 22.3 • Dia Imperial: 7/8 • Di more→a2 Metric: 20 • Cut Length Metric: 14 • Cut Length Imperial: 35/64 • Overall Length Metric: 65.5 • Bearing Dia Metric: 12.7 • Radius 1 Metric: 3.2

Self guiding cavetto style cutter, which follow the board edges for straight or curved work radius. Specifications • Shank Diameter: 1/4 • Dia Metric: 31 • Cut Length Metric: 12.7 &bul more→l; Cut Length Imperial: 1/2 • Overall Length Metric: 65 • Bearing Dia Metric: 12.7 • Bearing Dia Imperial: 1/2 • Radius 1 Metric: 4.8 • Radius 1 Imperial: 3/16

Trend Professional 1/4in shank bearing guided trimming cutter - 15.9mm diameter for laminate and template work 15.9mm diameter X 19.1mm cutting depth bearing guided profiling cutter, perfect for temp more→lating and trimming work in timber, laminate and wood based materials. Shank mounted bearing allows good vision of the template for easy and accurate following when hand held routing. Ideal for trimming veneers and laminates and also for forming curved rebates and grooves with templates for increased diversity. 1/4in shank for easy control in smaller routers with 'K'mark shank to ensure safe working practices. Specifications • Shank Diameter: 1/4 • Dia Metric: 15.9 • Dia Imperial: …

Tungsten Carbide Tipped (TCT) Multi Purpose hole saws feature a unique tooth set for an ultra-aggressive, high performance cutting of non-metallics. Rapid, heat-free stock removal of wood, MDF, plasti more→cs, and ceramic tiles, with a 54mm (2.1/8") cutting depth. Power through wood, MDF, plastics, plasterboard and ceramic wall tiles up to five times faster than a bi-metal hole saw. Carbide Tipped teeth for outstanding cutting performance and product durability. Cutting depth of 54mm (2.1/8”). Smooth cut with minimal heat build up. Suitable for use in mains and battery powered tools. Special arbors featuring extended length pilot drills are availableTeeth per Inch (25mm): 1Teeth Type: Tungsten Carbide Ti…

By raising the cutter, the top quirk is removed. Specifications • Shank Diameter: 1/2 • Dia Metric: 25.4 • Cut Length Metric: 15.9 • Cut Length Imperial: 5/8 • Overall Length more→Metric: 63.5 • Bearing Dia Metric: 9.5 • Bearing Dia Imperial: 3/8 • Radius 1 Metric: 4

Trend 8mm diameter down cut spiral cutter - 8mm shank, 25mm cut length. Spiral downcutting configuration offers the cleanest finish on the top surface of the workpiece when used in hand held or overh more→ead CNC routing applications. Two flute design is ideal for superior crosscutting performance in all timbers and on veneered sheet materials. Spiral design offers clean plunge cutting with reduced vibration under load for premium finishes. Down-cut spirals are ideal for hand held work and also in CNC machines. Chips are forced downwards as the cut is made so require a lower feed speed. Ultra-durable Solid Tungsten Carbide construction for increased performance and strength in all materials including …

TCT for abrasive materials such as chipboard, MDF, plywood, hardwoods and hard plastics. Two flutes give a clean finish to cut edges. Has a TCT plunge centre tip. Specifications • Shank Diam more→eter: 1/2 • Dia Metric: 17 • Dia Imperial: 43/64 • Cut Length Metric: 25 • Overall Length Metric: 65

Template thickness should be at least 5mm thicker than cutter cut length of cutter. Approximately 1.0mm flat will be found on the nose. Specifications • Shank Diameter: 1/4 • Dia Metric: more→12.7 • Dia Imperial: 1/2 • Cut Length Metric: 16 • Overall Length Metric: 66.61 • Bearing Dia Metric: 12.7 • Bearing Dia Imperial: 1/2 • Angle: 60

TCT for abrasive materials such as chipboard, MDF, plywood, hardwoods and hard plastics. Two flutes give a clean finish to cut edges. Has a TCT plunge centre tip. Specifications • Shank Diam more→eter: 1/2 • Dia Metric: 19.1 • Dia Imperial: 3/4 • Cut Length Metric: 25 • Overall Length Metric: 67

TCT for abrasive materials such as chipboard, MDF, plywood, hardwoods and hard plastics. Two flutes give a clean finish to cut edges. Has a TCT plunge centre tip. Specifications • Shank Diam more→eter: 1/4 • Dia Metric: 19.1 • Dia Imperial: 3/4 • Cut Length Metric: 25 • Overall Length Metric: 58

Lasts up to 50x longer than Bosch 2609256D05 Hole Saw in tough materials Cutting holes in brick, soft tiles and drywall is essential for plumbers and electricians on a building site or during renovat more→ion work. Few hole saws can withstand this kind of work in a mixture of tough construction materials, but the EXPERT Construction Material PC Plus can. This one hole saw serves, and lasts, for many jobs. With just a few huge carbide teeth on its steel body, the EXPERT Construction Material PC Plus delivers a real bite. Its large slots are optimised for fast chip removal, so it eats through anything from brick to wood and particle boards, fast. Bosch Carbide Technology is an optimum mix of the hardest …

To increase gluing area producing a strong joint in drawer production. Specifications • Shank Diameter: 1/2 • Dia Metric: 25.4 • Dia Imperial: 1 • Cut Length Metric: 12.7 • C more→ut Length Imperial: 1/2 • Overall Length Metric: 49

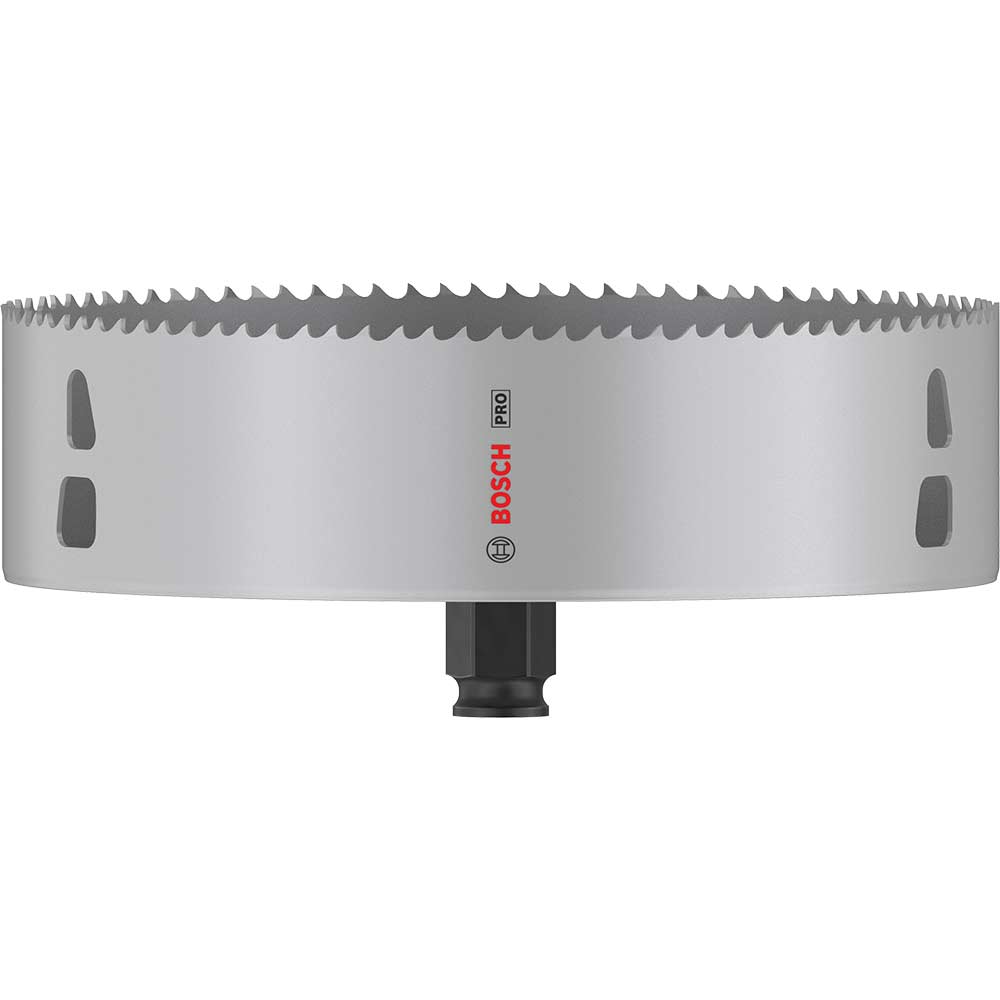

Lasts up to 2x longer than a standard 2608580419 Hole Saw Electricians and plumbers find hole saws invaluable for installing pipes, electrical boxes, and recessed lighting. Ideally, they want to carr more→y just one kind of hole saw for the challenges and materials that interior installation presents. That's why we have the PRO Multi Material. The PRO Multi Material Hole Saw has enhanced tooth design for fast and smooth cuts and high-cobalt HSS alloy teeth for longevity. It tackles steel cladding and drywall effectively. The Power Change plus makes changing hole saws and pilot drill bits faster and removing material plugs easier. For use with the Bosch Power Change Plus keyless arbor: offering …

TCT for abrasive materials such as chipboard, MDF, plywood, hardwoods and hard plastics. Two flutes give a clean finish to cut edges. Has a TCT plunge centre tip. Specifications • Shank Diam more→eter: 1/4 • Dia Metric: 17 • Dia Imperial: 43/64 • Cut Length Metric: 25 • Overall Length Metric: 54

Rotabroach mini cutters are designed for use in standard drill chucks and deliver clean, burr-free holes with minimum power consumption, making them ideal for use with cordless machines. Sizes 6mm to more→20mm are suitable for use in 3/8" or 1/2" drill chucks. Sizes 21mm and above are suitable for 1/2" drill chucks only. For information on the arbor & pilot drill assembly needed for your requirements, please see the attached PDF below. Complete kits are also available (RK604 and RK603) Features & Benefits • Rotabroach Mini Cutters cut clean, burr-free holes in seconds • The professional solution for cutting holes in sheet metal, pipes and plastics • Precision ground teeth and flutes …

Mini-V Boring Inserts VE11020BCF LVTX

The Evolution Broaching Cutter Kit is manufactured from fully ground M2 steel. They offer increased quality and performance. Suitable for use in magnetic drills and will fit most makes.This Evolution more→Short Broaching Cutter Kit contains the following sizes: 14 18 22mmPTDEVLCUTKIT3S

Lasts up to 2x longer than a standard Diamond Hole Saw Getting a good hole in hard tiles, stone, or even glass is a tricky task for any professional, but with your skill and the PRO Tile Hole Saw you more→can approach the job with confidence. Quality diamond grits on a continuous rim mean you can start cutting at an angle and you don't even need a guide. The PRO Tile offers highly effective design and durability. The brazed bonds between grits and body are strong. The low heat slots dissipate unwanted heat buildups, ensuring long-lasting performance. For use with the Bosch Power Change Plus keyless arbor: offering accuracy and robustness Tested in Bosch labs according to Bosch standard procedures.…

For deep mortising & grooving giving good chip clearance. Will plunge to a depth of 70mm in a number of passes. Features 2mm micrograin Tungsten Carbide tips, for cutting the most abrasive material more→s to give extra long life. PTFE coated, indicated by distinctive black colouring. Can be used on hardwood & softwood, fibreboard, plywood and particle board. Etched dimensions on extra long 40mm shanks. Specifications • Shank Diameter: 1/2 • Dia Metric: 16 • Cut Length Metric: 50 • Overall Length Metric: 101
