Asus Radeon RX 9070 XT Prime OC 16GB
 |
 |
Asus Radeon RX 9070 XT Prime OC 16GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
A high-end video card based on the RDNA 4 architecture, aimed at stable operation in 4K resolution. The model belongs to the Prime series, where the emphasis is traditionally placed not on external effects but on efficiency and reliability. The device is housed in a sleek black case without lighting, making it perfect for minimalist builds. The model is equipped with 16 GB of GDDR6 video memory and operates at an increased frequency of 3030 MHz, which provides a noticeable performance boost compared to reference specifications.
The cooling system is based on three fans and a massive heatsink, which allows effective heat dissipation even during extended gaming sessions. The dimensions of the Asus Radeon RX 9070 XT OC Prime 16GB are 312 mm in length and 2.5 slots thick, requiring adequate space in the case and sufficient power supply capacity. A key feature of the model is the dual BIOS with the ability to switch between silent and performance modes.
The silent mode reduces fan speeds for minimal noise levels, while the performance mode maximizes frequencies for the best gaming results. The card's design is understated without RGB lighting, making it versatile for any build. The RX 9070 XT on the RDNA architecture ensures comfortable gaming at 1440p with high settings and is capable of handling 4K in less demanding projects. Exclusively for the RDNA 4 architecture, the model supports smart scaling and frame generation with FSR 4 technology. This is an equivalent of NVIDIA DLSS, allowing artificially increased average FPS if the game is lagging.
Always clarify the specifications and configuration of the product with the online store manager before purchasing.
Buy Asus Radeon RX 9070 XT Prime OC 16GB
All prices 11 →ASUS PRIME RX9070 XT OC PCIe5 16GB DDR6 HDMI 3 DP 3030MHz Clock Overclocked Compact SFF-Ready PRIME-RX9070XT-O16G | £589.99 |  | |||
| £595.00 |  | ||||
ASUS PRIME-RX9070XT-O16G OC 16GB Graphics Card 90YV0L71-M0NA00 | £594.95 |  | |||
ASUS Radeon RX 9070 XT Prime OC 16GB GDDR6 Graphics Card 90YV0L71-M0NA00 | £594.99 |  | |||
Asus Asus Radeon RX 9070 XT Prime OC 16GB GDDR6 PCI-Express Graphics Card 90YV0L71-M0NA00 | £599.99 |  | |||
Performance in QuadHD; support for 4K with flexible settings; hardware switch between quiet and performance modes; price; temperatures. Considering the price - no.  Yura Dublyanko: use Asus Radeon RX 9070 XT Prime OC 16GB less than month |
Chip Navi 48 XTX with separate tensor and RT cores
The base version of the Radeon RX 9070 XT without overclocking is equipped with the Navi 48 XTX chip, which includes 4096 stream processors, 128 tensor cores, and 64 RT accelerators. The GPU operating frequency is 2970 MHz, GDDR6 memory capacity is 16 GB with a 256-bit bus, and there is 64 MB of Infinity Cache. The new tensor cores will interest AI specialists: in applications like Stable Diffusion, nearly double performance gains are promised compared to the previous Radeon RX 7800 XT model. Nevertheless, NVIDIA still leads in this segment, as evidenced by their AI solutions and data center revenues, which exceed gaming revenues by almost seven times.
Direct competitor for GeForce RTX 4070 and RTX 5070
AMD, it seems, has thoroughly studied the market and decided to focus efforts on the mid-price segment. The Radeon RX 9070 XT does not claim the flagship title and is not aimed at competing with the RTX 4090 or 5090. This model represents a balanced solution for 2K gaming and can handle 4K games with some compromises. The card is aimed at displacing high-priced GeForce models at the RTX 3070/4070/5070 level. In terms of performance, the Radeon RX 9070 XT is comparable to the GeForce RTX 4070 SUPER, although it slightly lags behind the Radeon RX 7900 XTX, AMD's 2022 flagship model.
Nothing extra

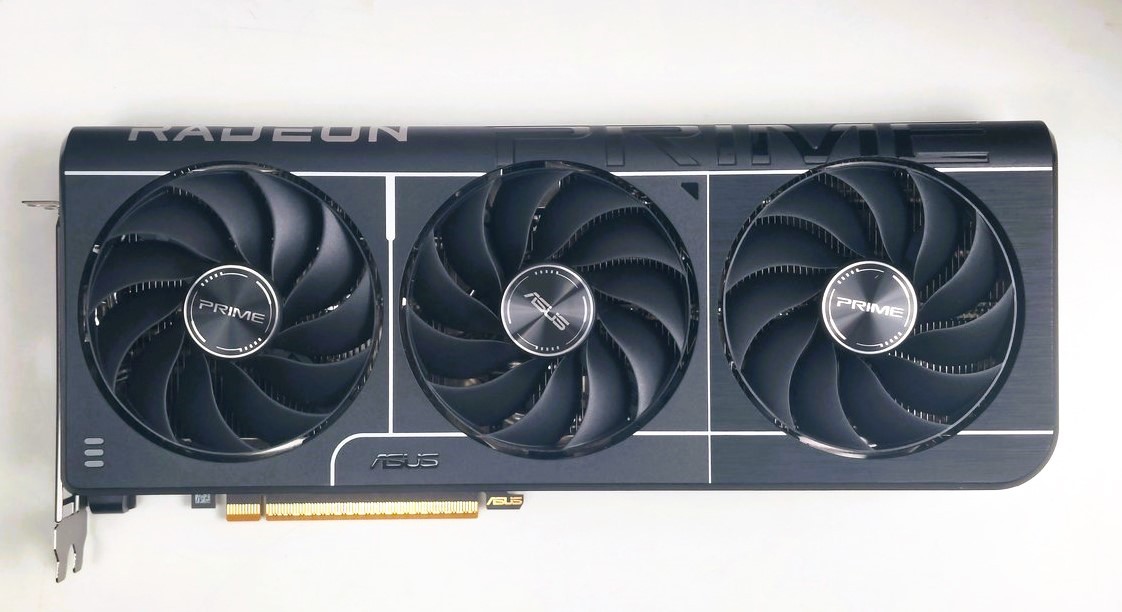

The Radeon RX 9070 XT in the ASUS Prime version is a classic gaming graphics card that combines decent specifications, affordable cost, and a strict minimalist design without unnecessary lighting and decorative details. The device is equipped with a massive heatsink with three axial fans, occupies 2.5 slots at a length of 312 mm, consumes about 300 W of power, and a 750 W power supply is recommended for its stable operation. The graphics card also features a switch for quiet and performance modes.

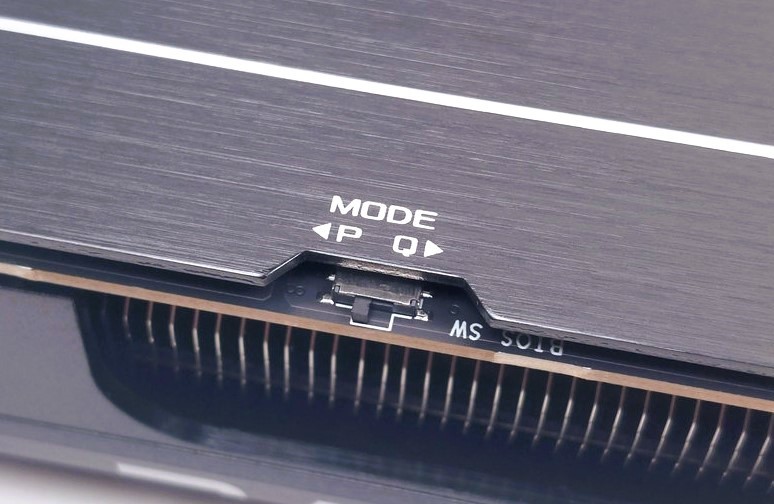

Notable features of the card include a glossy backplate, which nicely reflects and disperses lighting within the PC, as the card itself has no lighting. Additionally, there is a hardware switch on the side of the card (I'll add a photo) for changing operation modes, with positions for P-mode and Q-mode.
Regarding temperatures, during gameplay on maximum settings, the core temperature usually stays between 55 – 62°C, with fan noise remaining at a normal acoustic level.
However, I highly recommend undervolting. In my case, that's a GPU core voltage reduction of 75mV and setting the Power limit to 75%, with a video memory frequency increase of roughly +2000MHz (to compensate for the power limit). This reduced power consumption in games by 70 – 100W, which in turn lowered temperatures and fan speeds. The effect, in my opinion, was great, and FPS in games remained at the previous level.
I spent a long time deciding between the GeForce 5070 Ti and the Radeon RX 9070 XT, until I accidentally saw a recent test on the Hardware Unboxed YouTube channel comparing the graphics cards. The gist was that, initially, the GeForce was slightly more powerful, but over time AMD significantly unlocked the potential of their card through drivers, making the Radeon RX 9070 XT slightly more powerful than the GeForce 5070 Ti.
