Other Sound & Hi-Fi DBX

No two rooms sound the same. Ensure youll get a great sound whatever the sonic environment with a dbx 1215 Dual 15-Band Graphic EQ. Youll have granular control of your sound thanks to the 15 bands per channel offering ± 15 dB. Get startling audio clarity with less than 0.005% total harmonic distortion. Youll be able to shape your sound without adding any extra noise. For wider adjustments you can set the adjustment range to ±15 dB or for more precise changes you can change it to ±6 dB.

No two rooms sound the same. Ensure youll get a great sound whatever the sonic environment with a dbx 1231 Dual 31-Band Graphic EQ. Youll have granular control of your sound thanks to the 31 bands per channel offering ±15dB. Get startling audio clarity with less than 0.005% total harmonic distortion. Youll be able to shape your sound without adding any extra noise. For wider adjustments you can set the adjustment range to ±15dB or for more precise changes you can change it to ±6dB.

A lineage of great outboard gear informs the design of this fantastic studio tool. The dbx 131s Single 31-Band Constant Q Graphic EQ operates as your central EQing unit in your studio or on stage. Once installed take immediate advantage of its exceptional sound shaping capabilities. Equalization takes your music and sound installations from good to great. This signal processor is a must have for the serious producer or the hard-working live sound engineer.

No two rooms sound the same. Ensure youll get a great sound whatever the sonic environment with a dbx 215s Dual 15-Band Constant Q Graphic EQ. Youll have granular control of your sound thanks to the 15 bands per channel offering ±12 dB. Get startling audio clarity with less than 0.003% total harmonic distortion. Youll be able to shape your sound without adding any extra noise. For wider adjustments you can set the adjustment range to ±12dB or for more precise changes you can change it to ±6 dB.

Bring out your bass face. The dbx 510 Subharmonic Synthesizer is the perfect way to enhance the low frequencies of your sound. Designed to generate a new Waveform Modeled bass note exactly an octave below the bass in your source audio the 510 adds extra punch and power that you can feel. The patented process features two bands of subharmonic synthesis providing you with the perfect blend of sonic smoothness and bass control. The module also features an independent LF Boost circuit that lets you get the best out of your high-performance low-frequency speakers. With its addictive bass enhancement the 510 is perfect for a diverse range of applications.

Sibilance be gone! With the dbx 520 De-Esser you no longer have to endure that horrid sound thats often prevalent in vocals and high-frequency-dense sounds. Using the Frequency control the module splits your signal into two portions at your desired crossover point. By examining the dB differences between these portions the 520 can de-ess with exceptional precision for a crisp and clear sound whether youre on stage or in the studio. The 520 is capable of de-essing signals which change in level by as much as 60dB giving you complete control over even the most dynamic of sound sources. The front-panel LED Gain Reduction meter allows you to keep an eye on the status of your de-essing too so you …

Intelligent equalisation. The dbx 530 is a 500 Series parametric EQ with exceptional versatility. Three fully-parametric overlapping bands (High Mid and Low) provide you with intuitive control and sound-shaping capabilities. With up to 15dB of cut or boost for precise filtering and control of the frequency bandwidth you can equalize your sound with precision. The 530 features a unique Infinite Notch mode for each band that can be engaged independently without affecting the operation of the other bands. This is ideal for removing unwanted signals and frequencies such as feedback or resonance. And with the ability to switch from peaking to shelving operation for the Low and High bands shaping …

Legendary dynamics processing in a truly versatile format. The dbx 560A Compressor/Limiter is the perfect addition to any 500 Series rig. Boasting the same switchable OverEasy and Hard Knee compression curves from its industry-standard bigger brother the 560A allows you to add punch and clarity to your sound source with natural and organic results. From subtle compression to brick wall peak limiting the 560A is a powerful choice for studio recording and live performances. This 500 Series compressor is equipped with intuitive wide-ranging threshold ratio and output controls as well as program-dependent attack and release times. It is ideal for a diverse selection of sound sources including drums …

Mic Preamp - 500 Series

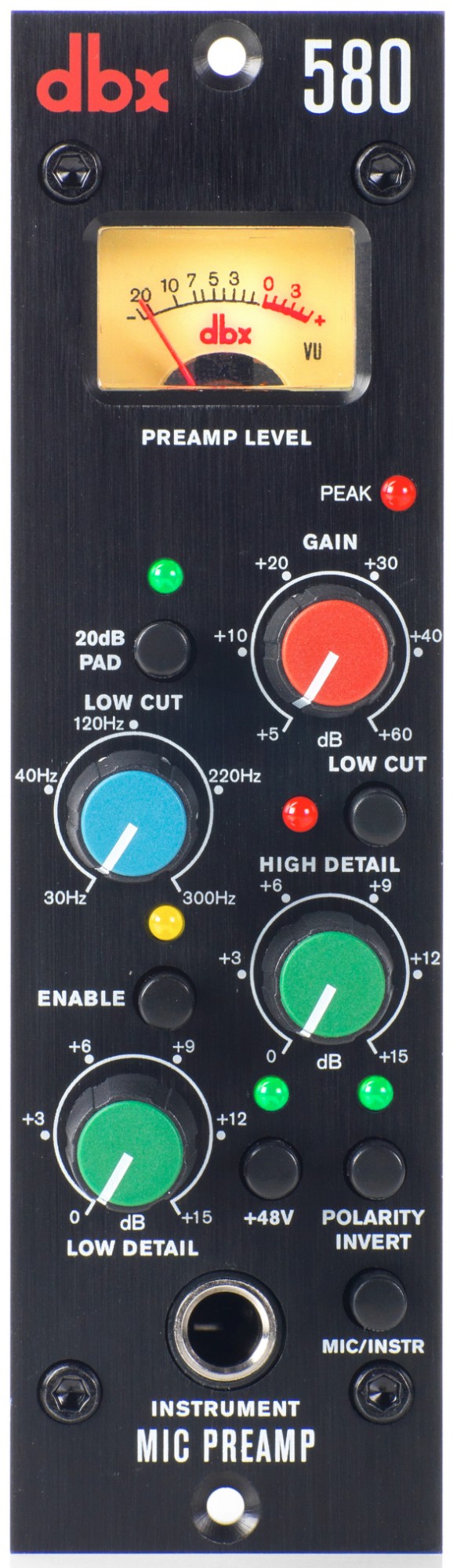

The dbx 580 Microphone Preamp is the perfect partner to your microphones providing sonically-transparent gain that will reveal the detail and audio signature of even the most esoteric microphones. It will transform their low level output signal to a high level high current output for direct connection to the line level inputs of your mixer sampler or any other recording medium that accepts line level analog input.

With its modular 500 Series design the dbx 580 delivers up to 60dB of gain features a variable-frequency Low-Cut Filter and unique Low and High Detail Equalization Controls a 20dB Pad Polarity Invert +48V Phantom Power a Front Panel Instrument Input VU Metering …

Stereo 2-Way/Mono 3-Way Crossover with XLR Connectors
More sound to your amps and speakers

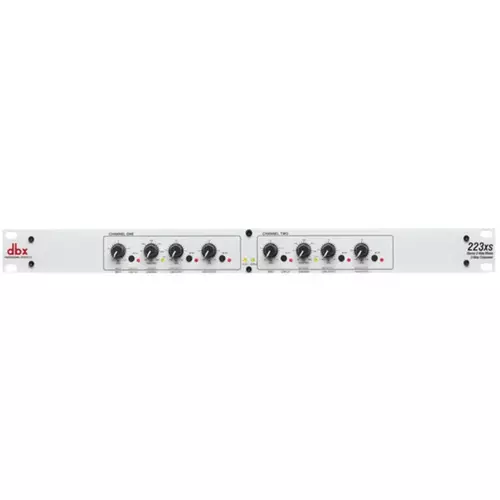

The secret to making speakers sound great lies with the crossover you use. With the dbx? 223xs Crossover you'll get great performance ultra low-noise rugged reliability and four decades of dbx knowledge and expertise in building the world's finest processors. The 223xs uses precision filters to separate the audio signal and direct the correct frequencies to your loudspeaker drivers. By directing only the specific frequency bands to each speaker driver the 223xs leaves your amplifiers free to use their full power on the usable signal eliminating distortion and giving your PA system a cleaner …

Exceptional sound and rugged reliability
When the pros need an EQ they turn to dbx. With a proven track record that spans four decades dbx EQs are the industry standard for touring studios and audio installations. With the dbx heritage of revered pro EQs the 231s meets the needs of the most demanding sound reinforcement environments while offering the simplicity of straightforward controls.

The dbx 231s includes two 31-band channels of 1/3-octave equalization 12 dB input gain switchable 6 dB or 12 dB boost/cut range 20mm nonconductive sliders an intuitive user interface and output level metering. From its extended 10Hz to 50kHz frequency response and 112 dB dynamic range to the quality componentry …

Get the most out of your speakers. Supply them with only the frequencies they need and get maximum efficiency with a dbx 234xs Stereo 2 + 3-Way/Mono 4-Way Crossover. When you give each driver only the frequencies it needs it can use every drop of its power handling on the audible signal. The result is simple - clear powerful undistorted sound. You can operate the crossover in 4-way mono 2-way stereo or 3-way stereo modes. This gives a good amount of versatility for use with different speaker combinations. Youll also be getting sharp high quality and clean filtering thanks to the Linkwitz-Riley 24dB per octave filters.

Compressor / Gate
Bring a more professional sound to your mix
Adding a dbx? 266xs Compressor/Gate to your live sound rig or studio gives you more dynamic control to help create a more polished professional sound. Having compression in your audio chain gives you the ability to smooth out uneven levels add sustain to guitars and fatten up your drums. It also makes it easy to bring vocals to the front of your mix - adding greater clarity and making them stand out from the surrounding instruments.

dbx knows compressors...after all we invented them! The 266xs is the latest in a long line of the world's most successful compressors from the inventors of the technology. Its patented Overeasy? …

Four processors add up to one superb channel strip. The dbx 286s Microphone Preamp & Channel Strip Processor is a complete solution for getting great sound. Youll get crystal clear sound and the control to adapt to any recording application. Make your sound a cut above the rest. Whatever the sound source take advantage of a compressor de-esser enhancer and expander/gate to perfect your sound. 48V phantom power and an 80 Hz cut off high pass filter ensure you can get a signal from any mic and eliminate low frequency hum or wind noise.

With 6 inputs and 4 outputs the dbx ZonePRO? 641 provides flexible signal routing powerful DSP processing and multiple control interfaces for Commercial Audio applications.

Designed to offer superior system sonic performance and flexibility the 641/641 deliver the highest quality tools available. Even the input and outputs connectors were chosen for their standard usage and reliability. The ZonePRO products offer Euroblock connectors for balanced signals and RCA connectors for interfacing with consumer equipment often used in commercial applications; there is also a simple analog input buss that allows inputs to be sent from one unit to the next for unit and job scalability. The 641 and …

Product Overview

Designed to completely eliminate feedback from a PA system the AFS2 is ideal for bands DJs live sound and fixed installation applications and offers a host of upgraded features including a Wizard auto-setup function a completely re-designed Advanced Feedback Suppression module and a large LCD display.

Successor to the popular AFS224 the AFS2 provides state-of-the-art feedback elimination yet is simple to use thanks to its one-button Wizard function that automates key setup parameters and walks the user through the configuration process. The AFS2 offers a full LCD display and 24 LED meters per channel for setup and monitoring. The AFS2 can be added to a system in minutes …

Advanced Cable Tester
The dbx CT3 is an advanced cable testing unit allowing you to evaluate a large variety of cables with ease. The CT3 offers many common connectors such as RJ45 RJ11 MIDI Speaker Twist XLR RCA Phono BNC DIN TRS TS DMX & Banana. It can be split into 2 parts a SENDER and RECEIVER so preinstalled and long cables can be tested.

• Tests up to 8-pin cables
• 2 piece chassis for testing installed cables
• Test Tone Generator
• Allows connection between different format connectors with ease
• ‘Banana’ connector continuity tester with beeper and LED indicator
• Super-rugged construction for durability and longer life
• (2) DMX …

dbx DBXDI1 direct box Active direct box Black

Loudspeaker Management System
There is a reason that Tour Sound Professionals and discriminating Audio Contractors choose dbx? DriveRack? products for their high-end tours and installs. The DriveRack products provide the tools that ensure that the system sounds its very best. With the introduction of the new 260 the heritage of unrivaled system/loudspeaker control continues. The 260 capitalizes on the road tested and contractor approved nature of the other products in the DriveRack line. The 260 provides full bandpass and crossover configurations as well as independent output processing and a full time RTA for live sound applications. Contractors will appreciate its control inputs for wall-panel …

The Zone Controllers offer extended utility to the DriveRack? and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection volume and muting to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

The ZC-8 provides both programmable source selection and volume control to ZonePRO edit.

Please call us for more detailed stock information on 0161 8681240 we may have some in our Sound Technology warehouse…

Complete Loudspeaker Management System
dbx took the dominant DriveRack? 260 improved its features and added more. The result?
The 3 input 6 output DriveRack VENU360.

The VENU360 provides all the processing and flexibility you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms additional input channels ethernet control via an Android? iOS? Mac? or Windows? device and updated wizards the DriveRack VENU360 continues the DriveRack legacy of great-sounding powerful and affordable loudspeaker management processors for a whole new generation.

AutoEQ™
New improved …

48-Point Patch Bay
The PB-48 is a patchbay that just works all the time every time. It comes in two flavors: half-normalled or de-normalled with 48 1/4 points on the front panel connected to 48 1/4 points on the rear. The PB-48 is a rugged noise-free versatile patchbay designed to serve all your patchbay needs from providing clear and easy access to your mixer and other studio gear to reducing the wear and tear on their jacks to facilitating quick and precise rerouting of devices within your studio setup.
