SFP Transceivers TP-LINK

1000Base-BX WDM Bi-Directional SFP Module
- Adopts the latest standard 1000Base-BX
- Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Supports Digital Diagnostic Monitoring (DDM)
- Supports Hot Swappable



What This Product Does
TP-LINK´s TL-SM321A-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver TL-SM321A-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 μm SMF (Single-Mode Fiber).   …

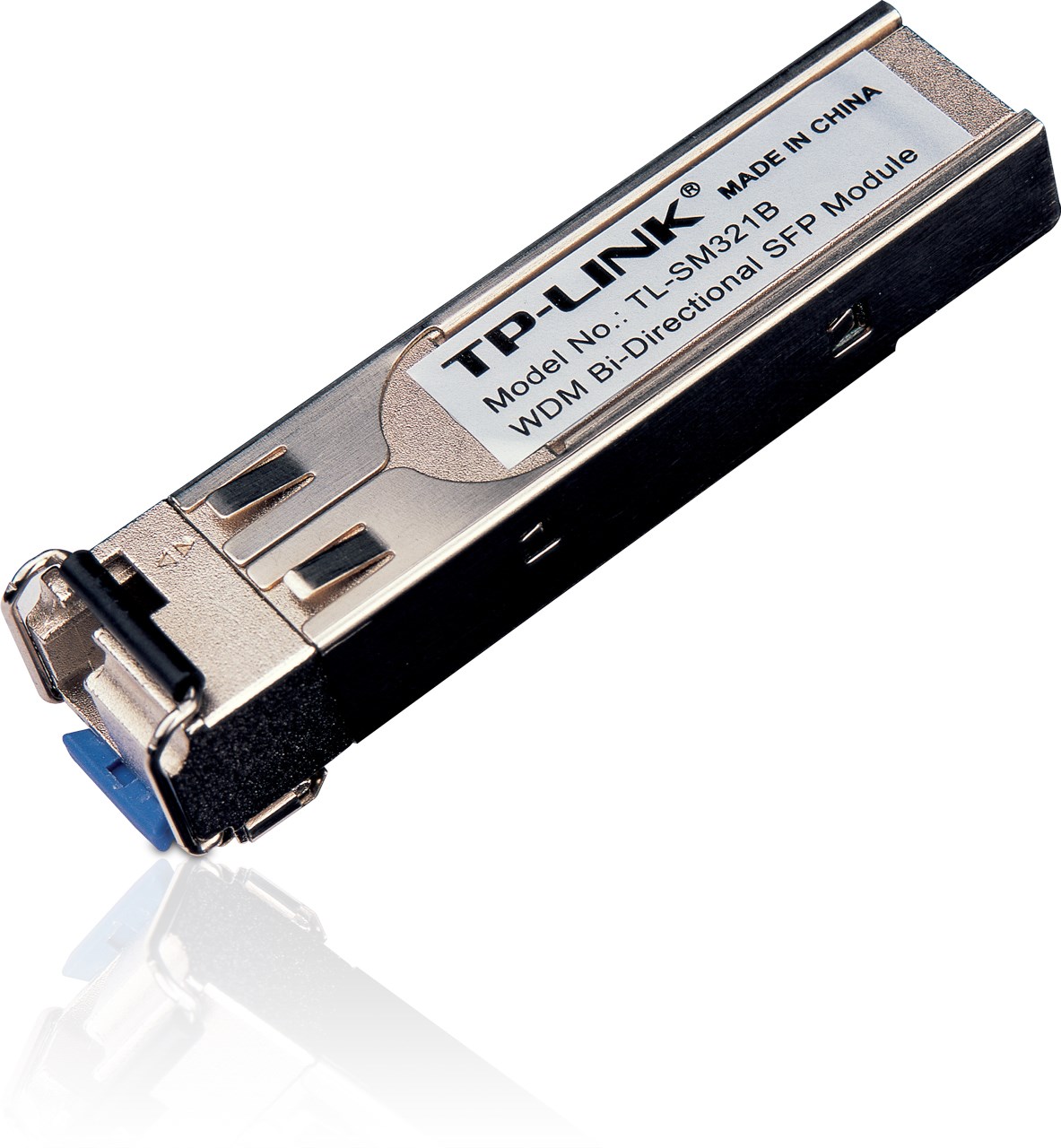

TP-Link´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km with TP-Link´s Routers, Switches, Media Converters to provide high speed and stability.

TP-LINK TL-FC111A-20.Maximum data transfer rate:100 Mbit/s, Network standards:IEEE 802.3, IEEE 802.3i, IEEE 802.3u, Copper Ethernet cabling.Technology:10BASE-T, 100BASE-T.Fiber optic connector:SC, Connectivity.Technology:Wired.Maximum transfer distance:20000 m, Fiber mode structure:Singlemode, Supported cable fiber diameters:9/125 µm.LED Indicators:Activity, Link, Power, Product Color:Black,.Certification:FCC, CE.Output voltage:5 V, Output current:0.6 A.Specifications:-Connectivity.Technology:Cable.-Fiber optic connector:SC.-Ethernet LAN ports (RJ-45):1.-Fiber Channel ports:1.-Width:94.5 mm.-Depth:73 mm.-Height:27 mm.-Output voltage:5 V.-Output current:0.6 A.-Storage relative humidity:5 -90%.-…

TP-LINK TL-FC111B-20.Maximum data transfer rate:100 Mbit/s, Network standards:IEEE 802.3, IEEE 802.3i, IEEE 802.3x, Copper Ethernet cabling.Technology:10BASE-T, 100BASE-T.Fiber optic connector:SC, Connectivity.Technology:Wired.Maximum transfer distance:20000 m, Fiber mode structure:Singlemode, Supported cable fiber diameters:9/125 µm.LED Indicators:Activity, Link, Power, Product Color:Black,.Certification:FCC, CE.Output voltage:5 V, Output current:0.6 A.Specifications:-Connectivity.Technology:Cable.-Fiber optic connector:SC.-Ethernet LAN ports (RJ-45):1.-Fiber Channel ports:1.-Width:94.5 mm.-Depth:73 mm.-Height:27 mm.-Output voltage:5 V.-Output current:0.6 A.-Storage relative humidity:5 -90%.-…

TP-LINK TL-SM5110-SR.SFP transceiver type:Fiber optic, Maximum data transfer rate:10000 Mbit/s, Interface type:SFP+.Product color:Silver,.Certification:FCC, CE.Input voltage:3.3 V.Specifications:-Input voltage:3.3 V.-Operating temperature range:0 -70 °C.-Relative operating humidity:10 -90%.-Storage temperature range:-40 -80 °C.-Storage relative humidity:5 -90%.-Digital Diagnostic Monitoring (DDM):Yes.-Wavelength:850 nm.-SFP transceiver type:Fiber optic.-Maximum data transfer rate:10000 Mbit/s.-Interface type:SFP.-Multi-mode fiber (MMF) compatible:Yes.-Fiber optic connector:LC (UPC).-Maximum transfer distance:300 m.-Supported cable fiber diameters:50/125,62.5/125 µm.-.Certification:FCC, CE.-Ho…

Specifications:Performance:- Sfp Transceiver Type:Fiber Optic.- Maximum Data Transfer Rate:1250 Mbit/S.- Interface Type:Sfp.- Multi-Mode Fiber (Mmf) Supported:Yes.- Fiber Cable Diameters Supported (Core/Cladding):50/125 µm.- Maximum Transfer Distance:300 M.- Wavelength:850 Nm.- Networking Standards:Ieee 802.3ae.- Power (Input Voltage):3.3 V.- Operational Conditions:- Operating Temperature (T-T):0.- 70 °C.- Storage Temperature (T-T):-40.- 85 °C.

TP-LINK´s TL-SM321A adopts the latest 1000Base-BX standard, transmission over a single strand of fiber, with a different wavelength in each direction.You can extend the network distance up to 10Km with TP-LINK routers, switches, media converters, to provide high speed and stability.Features:-WDM Bidirectional SFP Module.-Supports bidirectional WDM technology, using a single strand of fiber, saves costs.Specifications:-Input voltage:3.3 V.-Operating temperature range:0 -70 °C.-Relative operating humidity:10 -90%.-Storage temperature range:-40 -80 °C.-Storage relative humidity:5 -90%.-SFP transceiver type:Fiber optic.-Maximum data transfer rate:1250 Mbit/s.-Interface type:SFP.-Fiber optic connector:LC (UP…

Specifications:Features:- Cable length:1 m.- Connector 1:SFP+.- Connector 2:SFP+.- Connector 1 gender:Male.- Cable type:DAC.Features:- Transfer rate:10 Gbit/s Operational conditions:- Operating temperature (T-T):0.- 70 °C.- Storage temperature (T-T):-40.- 80 °C Packaging data:- Quantity per pack:1 pc(s).

The TL-SM311 series Fibre Module Cards are introduced for extending transfer distance, attached to our managed/web smart switches. They can extend the distance to several kilometres even tens of kilometres which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fibre modules according to the demand in order to lower cost.

Features:- Complete Wi-Fi Coverage At Home By Eliminating Weak Signal Areas- Dual-Band 2.4ghz (300 Mbps) And 5ghz (867 Mbps) Wi-Fi Connectivity For A More Stable Wi-Fi Experience- Creates A Mesh Network By Connecting To A Onemesh Router To Provide Seamless Coverage Throughout The Home - Adaptive Path Selection - Automatically Connects To The Fastest Connection Path To The Router And Runs At Top Speed - High-Speed Mode - Ideal For Hd Streaming And Gaming, Maximizing Speed By Using A Wifi Band As A Dedicated Backhaul - Ap Mode - Creates A Wi-Fi Access Point That Extends A Wired Network With Wi-Fi - Intelligent Signal Strength Display To Find The Best Location For Optimal Wi-Fi Coverage - Wps Button …

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex 10G Ethernet connections up to 10 km with 9/125m fiber cables respectively.

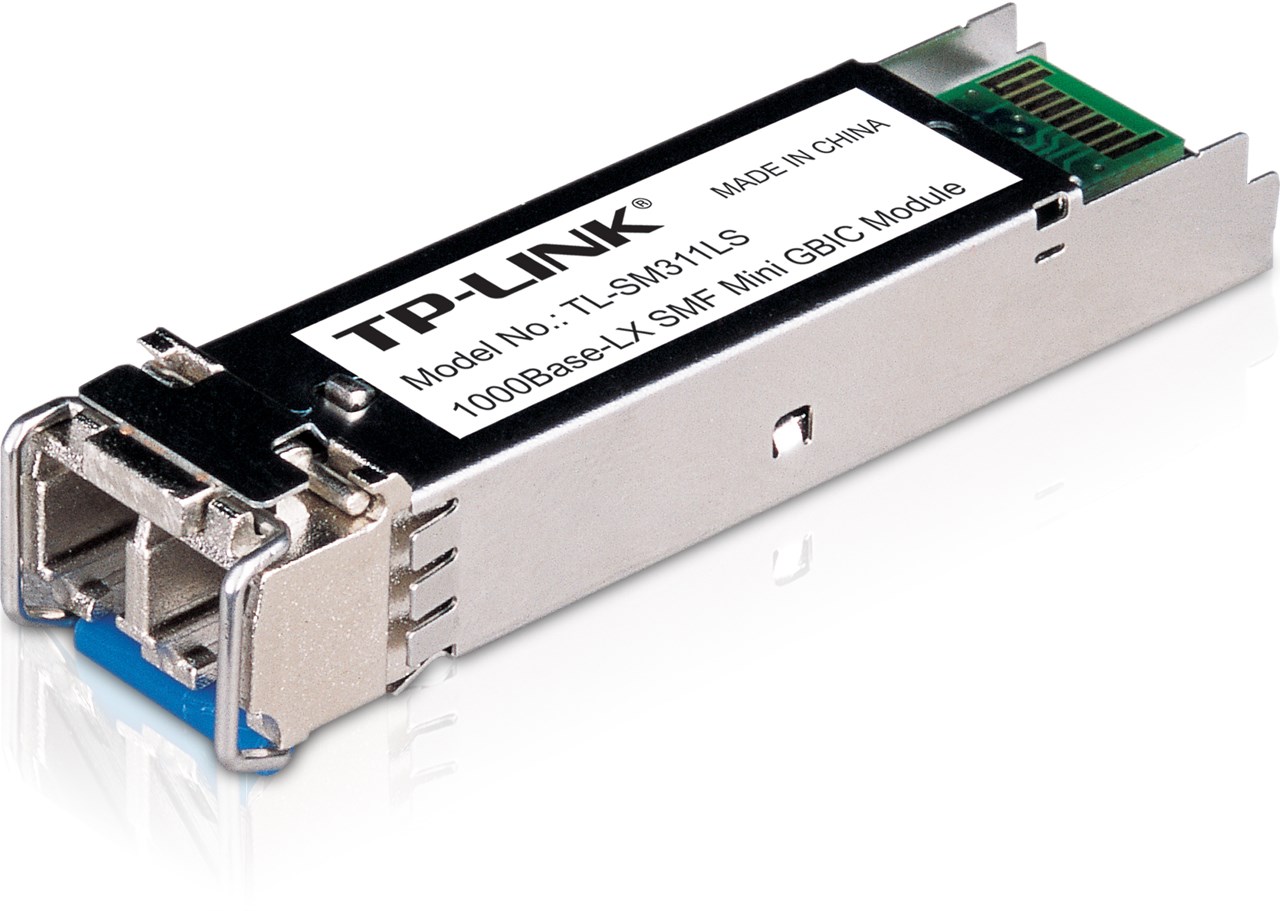

TP-Link TL-SM311LS network transceiver module Fiber optic 1250 Mbit/s mini-GBIC/SFP 1310 nm

TP-Link DS-PMA-C+.SFP transceiver type:Fiber optic, Maximum data transfer rate:2488.32 Mbit/s, Interface type:SFP.Product color:Stainless steel.Input voltage:3.3 V.Specifications:-Input voltage:3.3 V.-Tx power (max.):7 dBmW.-Rx power (min):-30 dBmW.-Rx power (max.):-12 dBmW.-Wavelength:1490 nm.-SFP transceiver type:Fiber optic.-Maximum data transfer rate:2488.32 Mbit/s.-Interface type:SFP.-Maximum transfer distance:20000 m.-Single mode fiber (SMF) compatible:Yes.-Supported cable fiber diameters:9/125 µm.-Transmission bandwidth (max.):1490 nm.-Bandwidth for reception (max.):1310 nm.-Tx power (min):3 dBmW.-Hot-swap:Yes.-Product color:Stainless steel.

TP-Link SM6110-LR.SFP transceiver type:Fiber optic, Maximum data transfer rate:25780 Mbit/s, Interface type:SFP+.Product colour:Grey.Input voltage:3.3 V.Width:57 mm, Depth:14 mm, Height:12 mm.Quantity per pack:1 pc(s)
