Taps & Dies Swiss Tech

Straight Flute - ISO Metric Coarse HSS-EV Nitride Finish. For blind holes. Plug/bottoming lead to DIN form C (2 x P to 3 x P). Tapping tolerance to 6HX. Manufactured to DIN 371/376.

Spiral Flute - ISO Metric Coarse HSS-EV Oxidised Finish. For blind holes. Taper lead to DIN form C (3 x P). Tapping tolerance: Spiral flute to 6H. ISO Metric Coarse Helix angle 40. Tapping depth 2.5 x D.

PRO Series - Blue Ring - Spiral Point - ISO Metric Coarse HSS-EV Oxidised Finish. For through holes. Taper lead to DIN form B (3.5 x P to 5.5 x P). Tapping tolerance to 6HX. Manufactured to DIN 371/376.

Straight Flute - ISO Metric Coarse HSS-EV Nitride Finish. For through holes. Taper lead to DIN form D (taper) (3.5 x P to 5 x P). Tapping tolerance to 6HX. Manufactured to DIN 371/376.

Spiral Flute - ISO Metric Coarse HSS-PM Nitride & Oxide Finish. For blind holes. Taper lead to DIN form C. This tap has the special chamfer lead of (3 x P). Tapping tolerance: spiral flute to 6H. ISO more→Metric Coarse Helix angle 40. Tapping depth 2.5 x D.

Manufactured to DIN 371/376 Suitable for the following Material Groups Spiral Flute - HSS-EV Nitride Finish For blind holes. Taper lead to DIN form C (2 x P to 3 x P). Tapping tolerance to 6H.

Spiral Point/Gun Nose - ISO Metric Coarse HSS-EV Oxidised Finish. For through holes. Taper lead to DIN form B. (3.5 x P to 5.5 x P). Tapping tolerance to 6H. Manufactured to DIN 371/376.

Straight Flute - ISO Metric Coarse HSS-EV Nitride Finish. For through holes. Taper lead to DIN form D (taper) (3.5 x P to 5 x P). Tapping tolerance to 6HX. Manufactured to DIN 371/376.

Straight Flute - ISO Metric Coarse HSS-EV Nitride Finish. For blind holes. Plug/bottoming lead to DIN form C (2 x P to 3 x P). Tapping tolerance to 6HX. Manufactured to DIN 371/376.

Spiral Point/Gun Nose - HSS-EV Oxidised Finish UNC - Unified National Coarse Bright Finish Taper lead to DIN form B (3.5 x P to 5.5 x P) Tapping tolerance to 2B Manufactured to DIN 371/376 more→For through holes Tapping tolerance to 6HX.

Manufactured to DIN 371/376 Suitable for the following Material Groups Spiral Flute - HSS-EV Nitride Finish For blind holes. Taper lead to DIN form C (2 x P to 3 x P). Tapping tolerance to 6H.

Spiral Point/Gun Nose - ISO Metric Coarse HSS-PM Nitride & Oxide Finish. For through holes. Taper lead to DIN form B (3.5 x P to 5.5 x P). Tapping tolerance to 6HX.

Spiral Point/Gun Nose - ISO Metric Coarse HSS-EV Oxidised Finish. For through holes. Taper lead to DIN form B. (3.5 x P to 5.5 x P). Tapping tolerance to 6H. Manufactured to DIN 371/376.

Spiral Point/Gun Nose - ISO Metric Coarse HSS-Co Bright Finish. For through holes. Taper lead to DIN form B (3.5 x P to 5.5 x P). Tapping tolerance to 6HX. Manufactured to DIN 371/376.

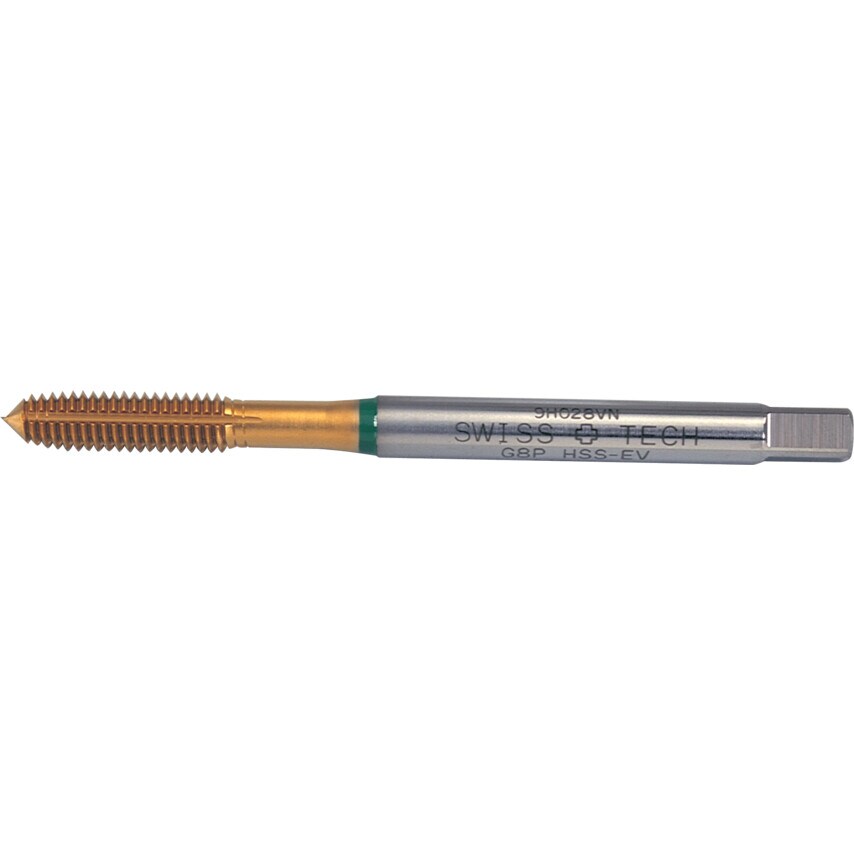

Lubrication grooves are a feature of all taps of M3.0 and over. Manufactured to DIN 371/376. Fluteless - HSS-EV (TiN Coated) For through and blind holes. Taper lead to DIN form B (3.5 x P to 5.5 x P more→). Tapping tolerance to 6H. ISO Metric Coarse

Spiral Flute - ISO Metric Coarse HSS-EV Oxidised Finish. For blind holes. Taper lead to DIN form C (3 x P). Tapping tolerance: Spiral flute to 6H. ISO Metric Coarse Helix angle 40. Tapping depth 2.5 x D.

Spiral point/gun nose tool geometry (with up to 138 parameters) has been developed and optimised during long-term tests in co operation with users for the different sections of structural steel, alumi more→num casting, machining steel, VA steels, heat-resistant steels and tool steels. Selected hard coatings increase the range of applications. The objective of developing Swiss+Tech's 'Black Ring' Taps was the realisation of narrower tolerances and more efficient cutting times for the thread production. The unique general purpose properties of these taps guarantee high productivity by reducing the amount of time spent changing taps for different materials and at the same time reduces the number of …
