Metabo KFM 18 LTX 3 RF 601754700
Diamond Core Bits & Milling Cutters3248
 |
Purpose made for stair housing jigs. Ensures tight fit of tread in string. Specifications • Shank Diameter: 1/2 • Dia Metric: 19 • Dia Imperial: 3/4 • Cut Length Metric: 25.5 & more→bull; Overall Length Metric: 65 • Angle: 95
 |

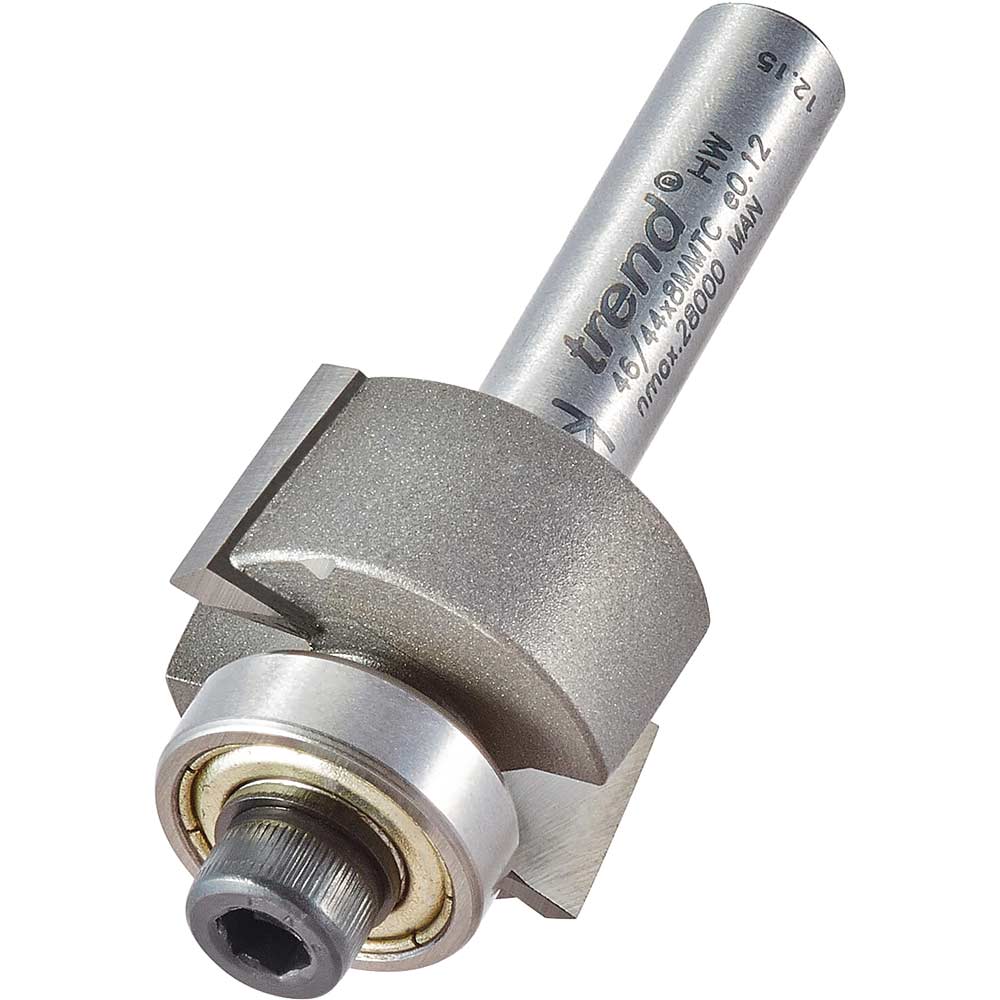

Popular rebate sets which include different size bearings for a choice of rebates. Ease of setting-up and accurate depth of cut. Ideal for rebating straight and shaped work pieces. Ideal with deli more→cate applications such as musical instrument production, when a small rebate is required for insertion of purfling. When using bearing Ref. B95A, make two passes when a full depth of cut is required by using a larger bearing first. Specifications • Shank Diameter: 8 mm • Dia Metric: 24 • Cut Length Metric: 12.7 • Cut Length Imperial: 1/2 • Overall Length Metric: 56.5 • Bearing Dia Metric: 22 • Rebate Metric: 4
 |

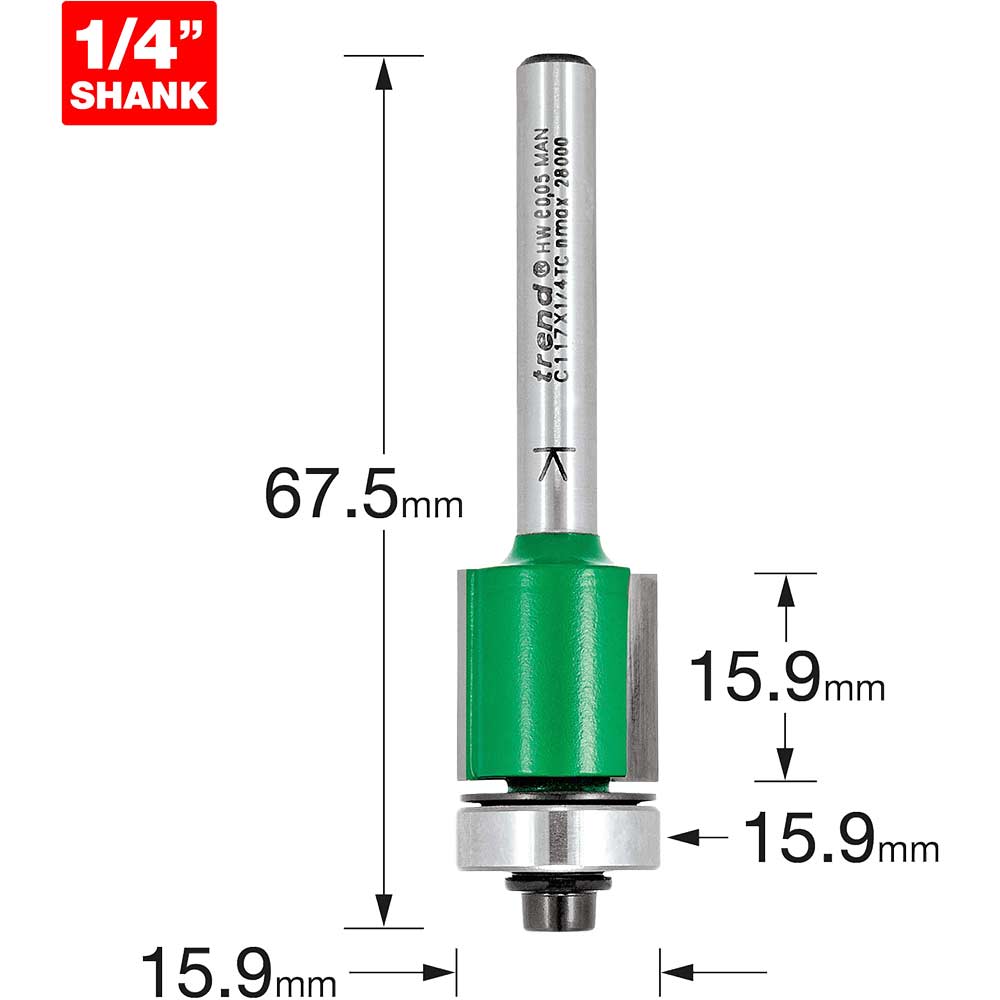

Used for trimming plastic or plywood overlays. Also for copy profiling with a template. Specifications • Shank Diameter: 1/4 • Dia Metric: 15.9 • Dia Imperial: 5/8 • Cut Length M more→etric: 15.9 • Cut Length Imperial: 5/8 • Overall Length Metric: 67.5 • Overall Length Imperial: 2 41/64 • Bearing Dia Metric: 15.9 • Angle: 90
 |

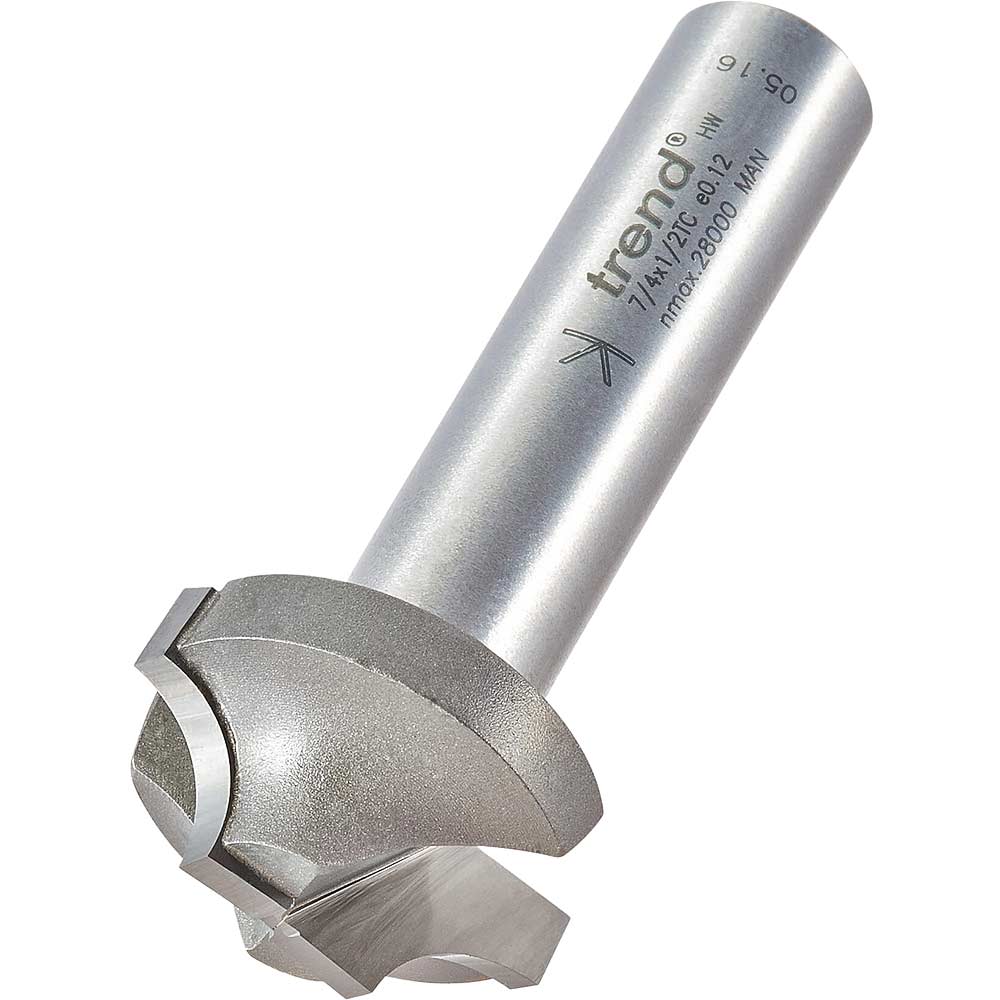

Some Ovolo cutters can be used with radius cutters, to make rule joints. Specifications • Shank Diameter: 1/2 • Dia Metric: 28 • Cut Length Metric: 15 • Overall Length Metric: 68 more→• Radius 1 Metric: 8
 |
Two flute helical up-cut cutters suitable for non-ferous metals with long shank, fine finish & up-cut. Cutters are designed to plunge and machine or mill lateral slots. All aluminium tooling should more→be used with a coolant, wax stick or lubricant. Material should be securely clamped. Specifications • Shank Diameter: 8 mm • Dia Metric: 5 • Cut Length Metric: 40 • Overall Length Metric: 100 • Type or Grade: Up-cut
 |

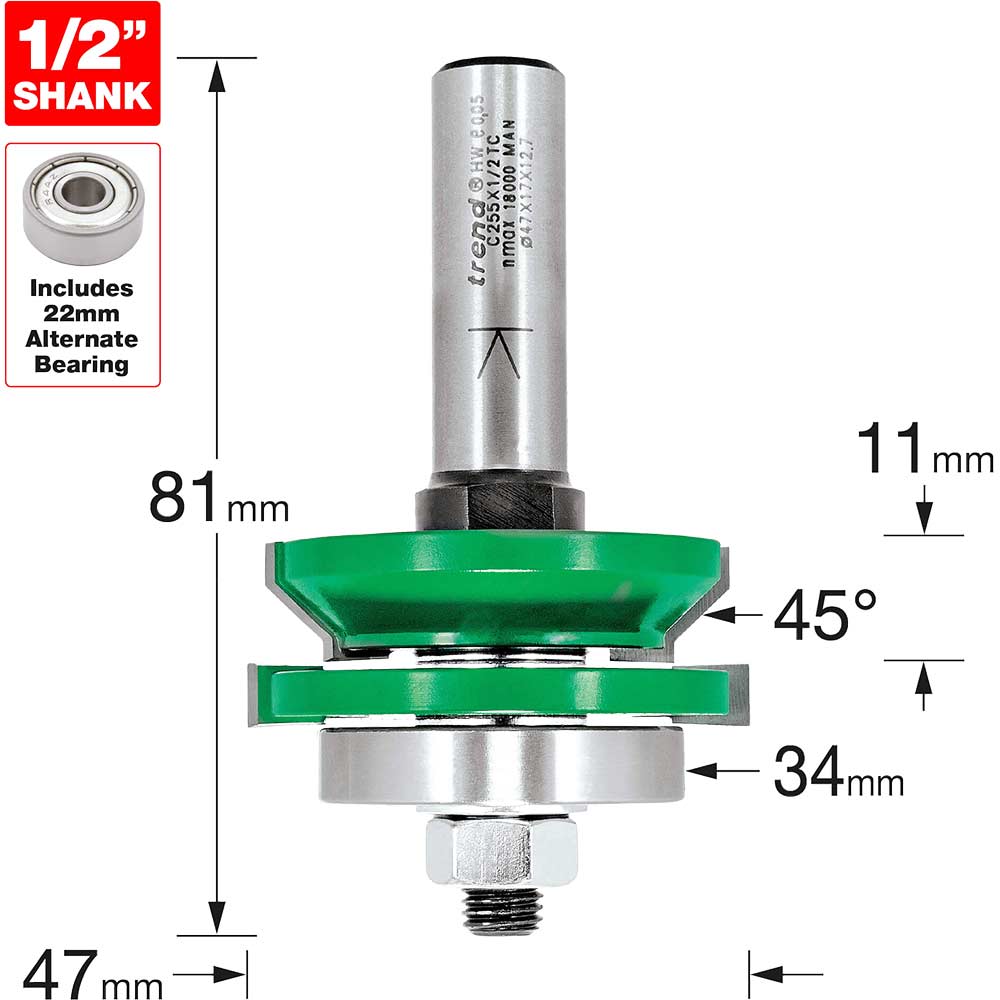

A complete cutter set for producing matchlining. Jointing parts are interchanged on the arbor to change the mode of the cutter. Set Ref. C255 can be converted to Ref. 256, and vice-versa, by purchas more→ing the respective groover. Specifications • Shank Diameter: 1/2 • Dia Metric: 47 • Dia2 Metric: 34 • Cut Length Metric: 11 • Overall Length Metric: 81 • Bearing Dia Metric: 34 • Angle: 45
 |
Miniature bearing cutters ideal for sign-making, musical instrument building and other small intricate projects. Can be used on wood and plastic. Small bearing allows access to tight spaces and give more→s sharp corners. The unique design delivers a constant cutting edge that eliminates the need for hand sanding or filing. The tools have miniature bearings fitted which have a limited life of approximately 100 linear metres, after which these consumables will need to be replaced. Specifications • Shank Diameter: 1/4 • Dia Metric: 11.1 • Cut Length Metric: 9.5 • Cut Length Imperial: 3/8 • Overall Length Metric: 46 • Bearing Dia Metric: 4.8 • Radius 1 Metric: 3.…
 |

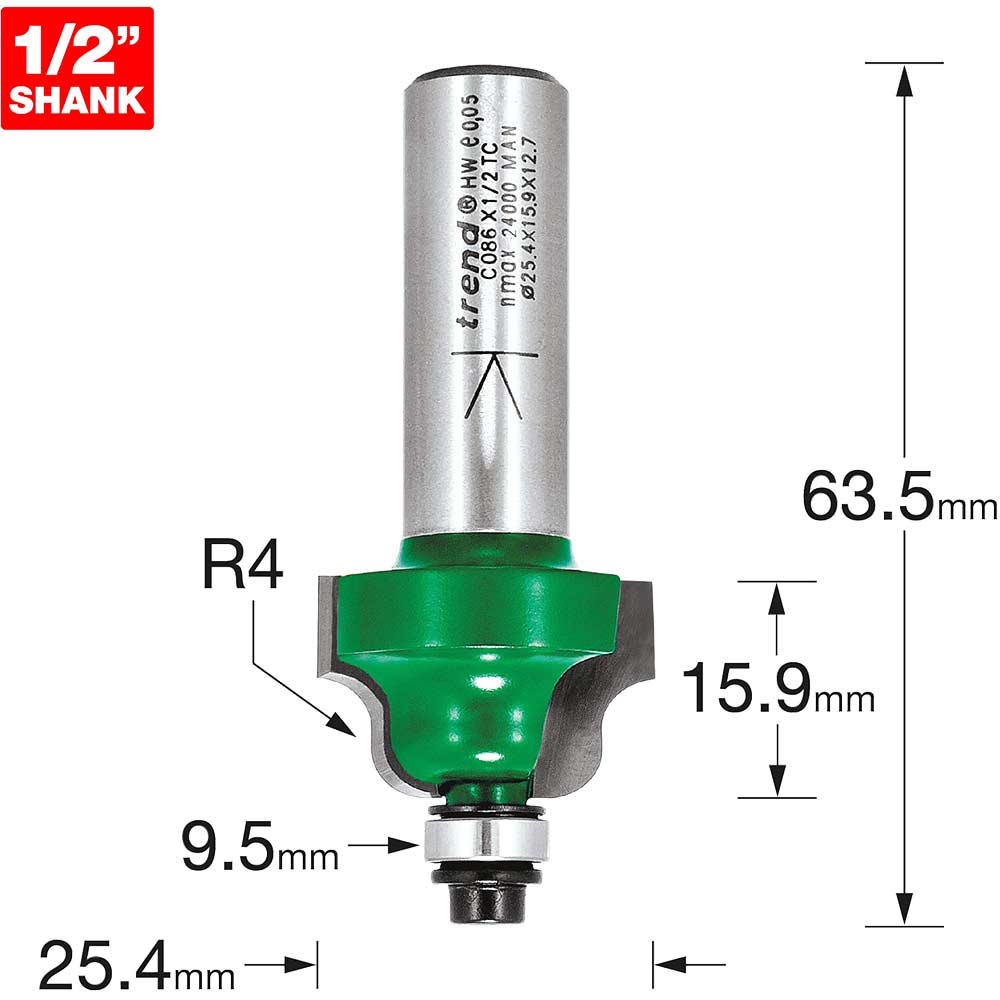

By raising the cutter, the top quirk is removed. Specifications • Shank Diameter: 1/2 • Dia Metric: 25.4 • Cut Length Metric: 15.9 • Cut Length Imperial: 5/8 • Overall Length more→Metric: 63.5 • Bearing Dia Metric: 9.5 • Bearing Dia Imperial: 3/8 • Radius 1 Metric: 4
Important!
Compatibility with specific models Routers & Trimmers should be confirmed with the online store manager directly before purchase.
Compatibility with specific models Routers & Trimmers should be confirmed with the online store manager directly before purchase.
